Place arrays on Terrace

When arranging PV arrays on terraced fields, the orientation of each array is not exactly the same, and effective connection between adjacent arrays is required, which significantly increases the difficulty of design.

Candela3D software has improved the layout of terraced fields in version 3.8. Users can choose to arrange them with a back slope or facing south, or follow the prompts to arrange them all;

For areas with poor automatic layout effect, users can manually draw the layout centerline for layout.

The layout effect is as follows:

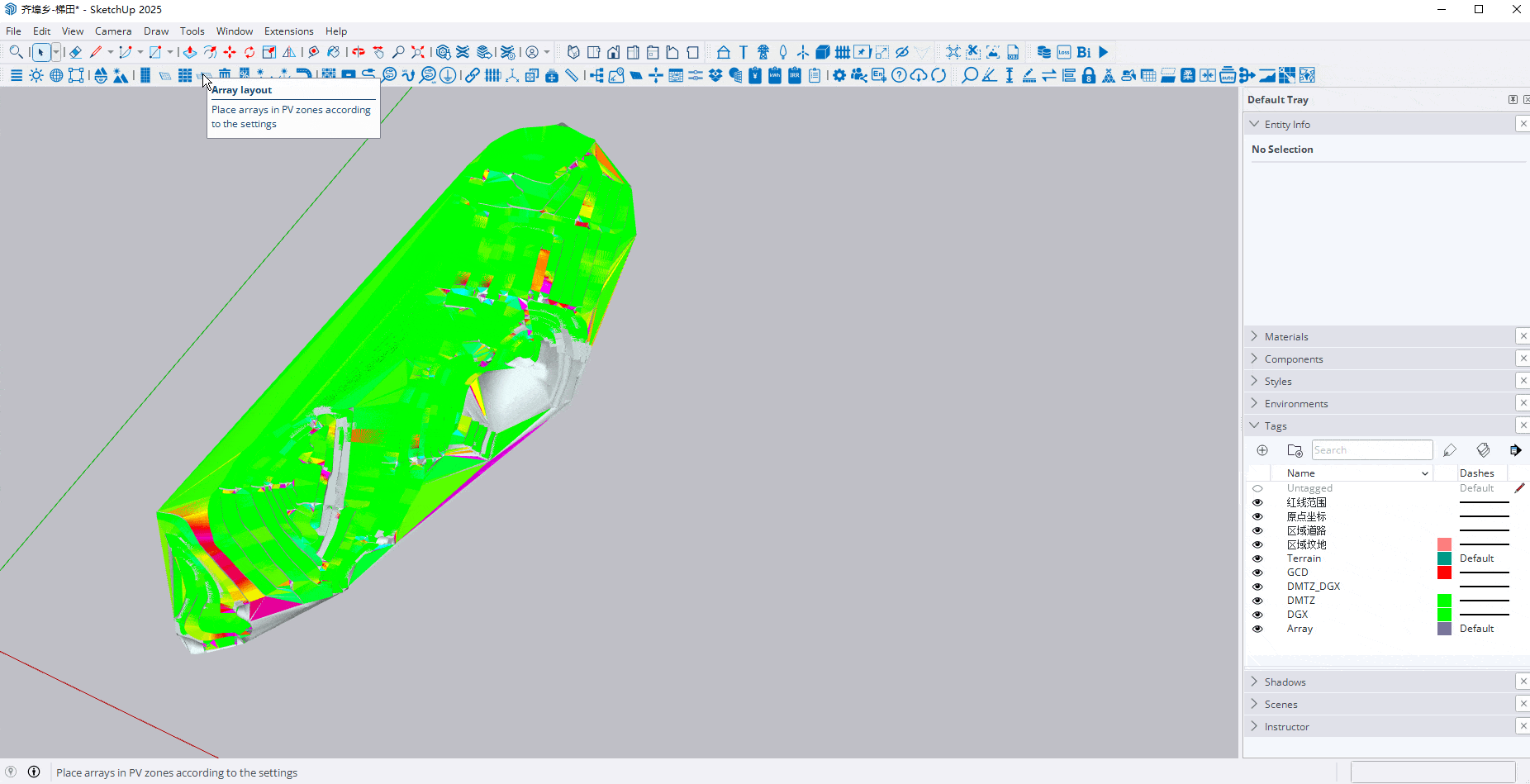

1. Arrange Selected PV zones

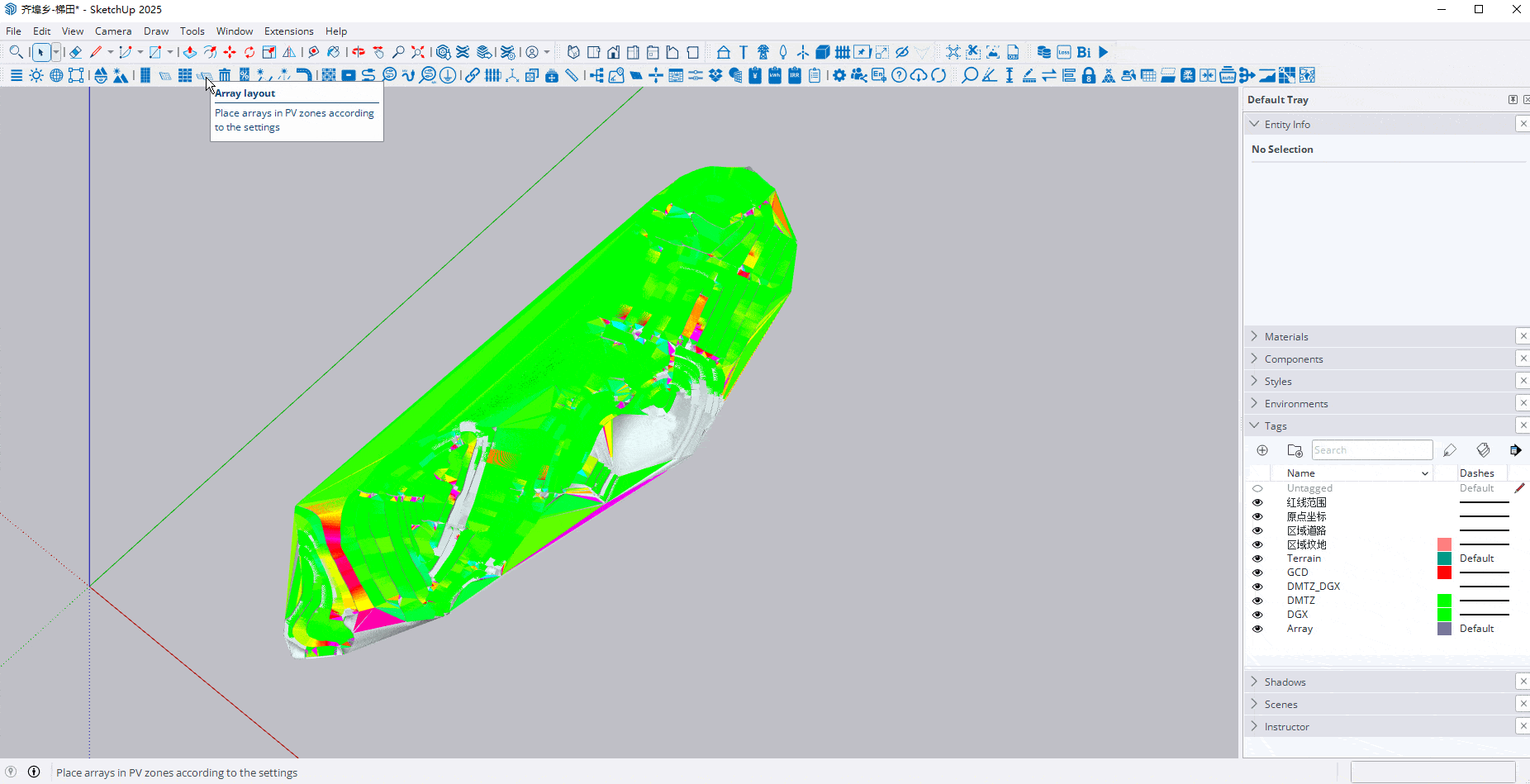

2. Fill all

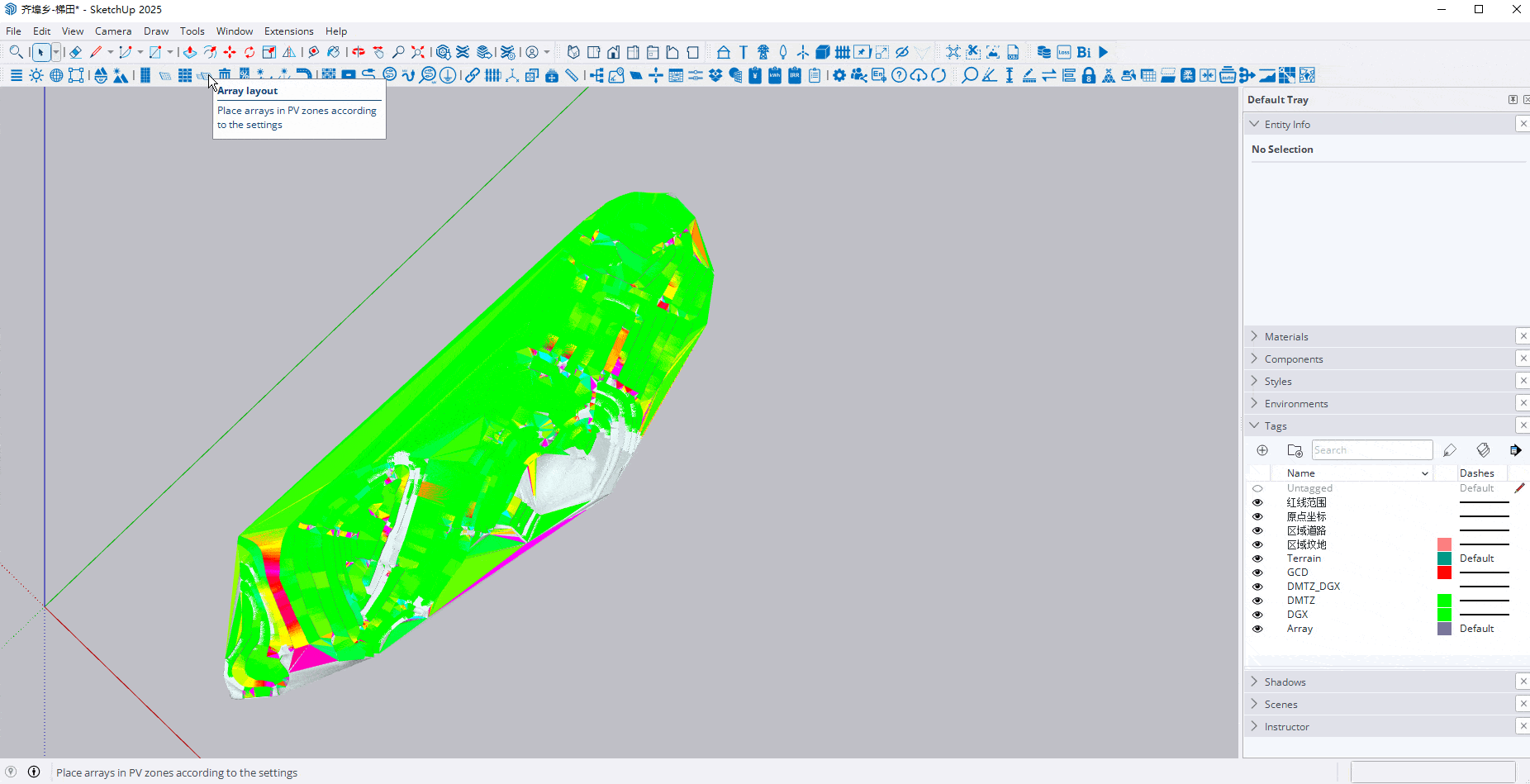

3. Manual placing
