Through Valid Slope analysis, we can more intuitively understand the Status of different Layout zone of mountains, which is conducive to the follow-up design Working. Slope analysis has many dimensions. You can perform Analyse on Slope and Aspect, and also perform Analyse on N-S slope and E-W slope. The Range of Analyse can be: all mountains in the available range, the part of Only slope analysis valid that is valid, and the part of mountains and sunshine that are both Valid.
When Analyse h, User defined Analyse and shading intervals are often required. For example, when conducting Slope analysis, only III Num intervals of 0-10 °, 10-20 ° and greater than 20 ° are concerned.
After the Candela3D software is released from 3.8, it supports users to color multi dimension and User defined intervals, and will support Import to CAD in subsequent versions.

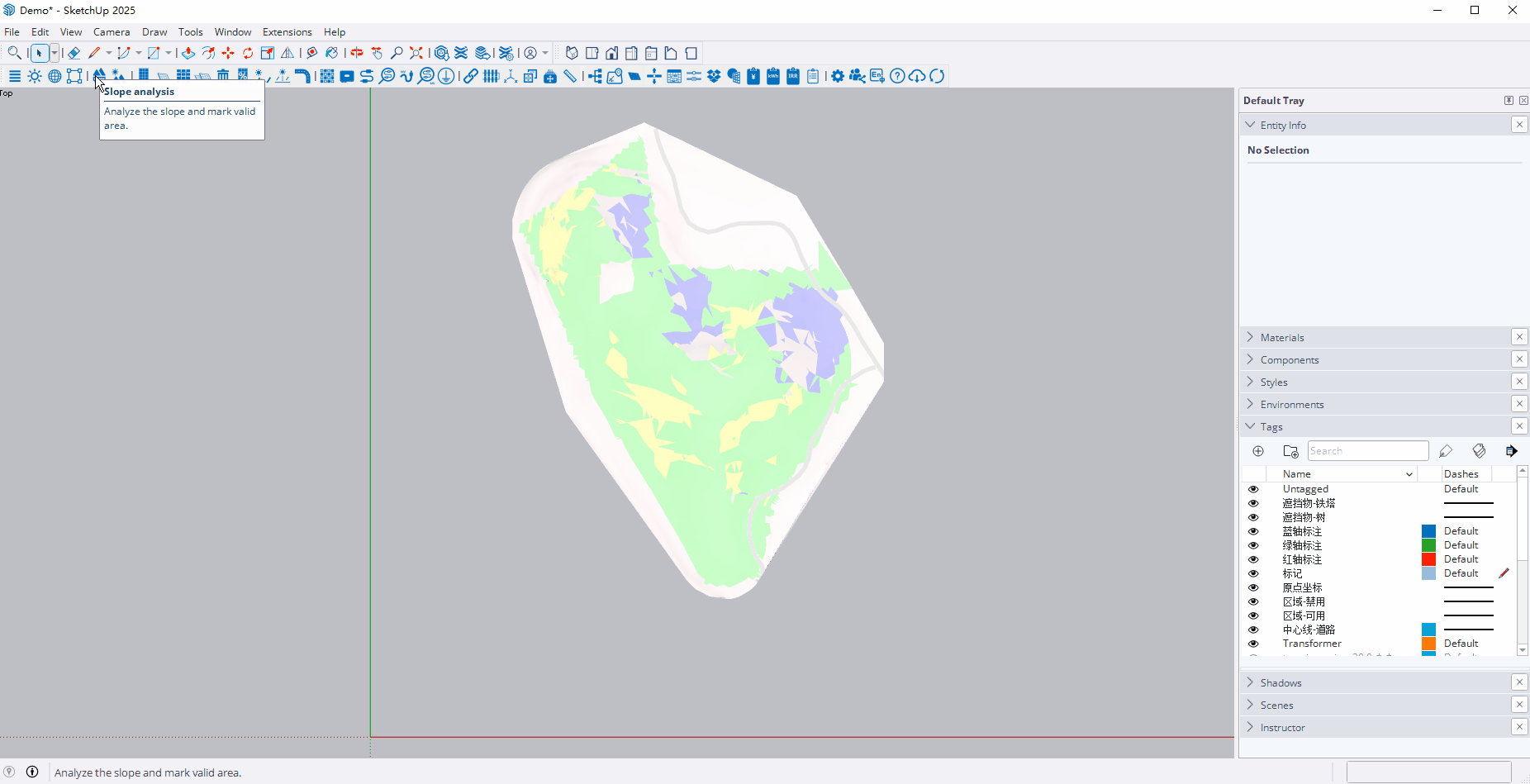

1. Analyze by aspect
2. Analyze according to the natural slope
3. Analyze by Terrain S-N slope

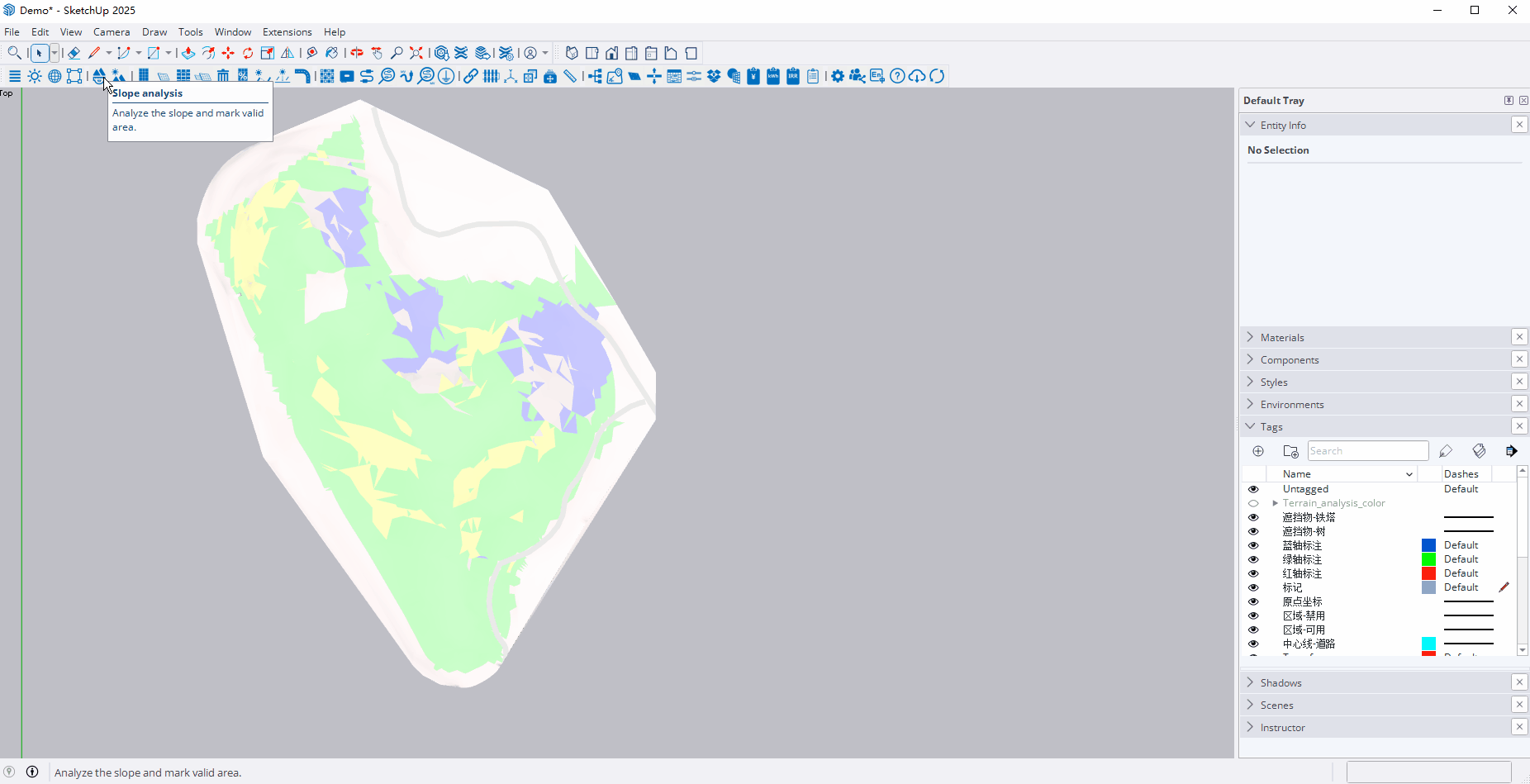

4. Analyze by East-West slope
