When using cable trays for cable laying in applications such as the integration of fishing and photovoltaic power generation, due to the limitation on the span of the support piles of the trays, it is necessary to not only fully utilize the existing pile foundations of the racks but also to additionally increase the number of tray piles where the support span exceeds the set value.

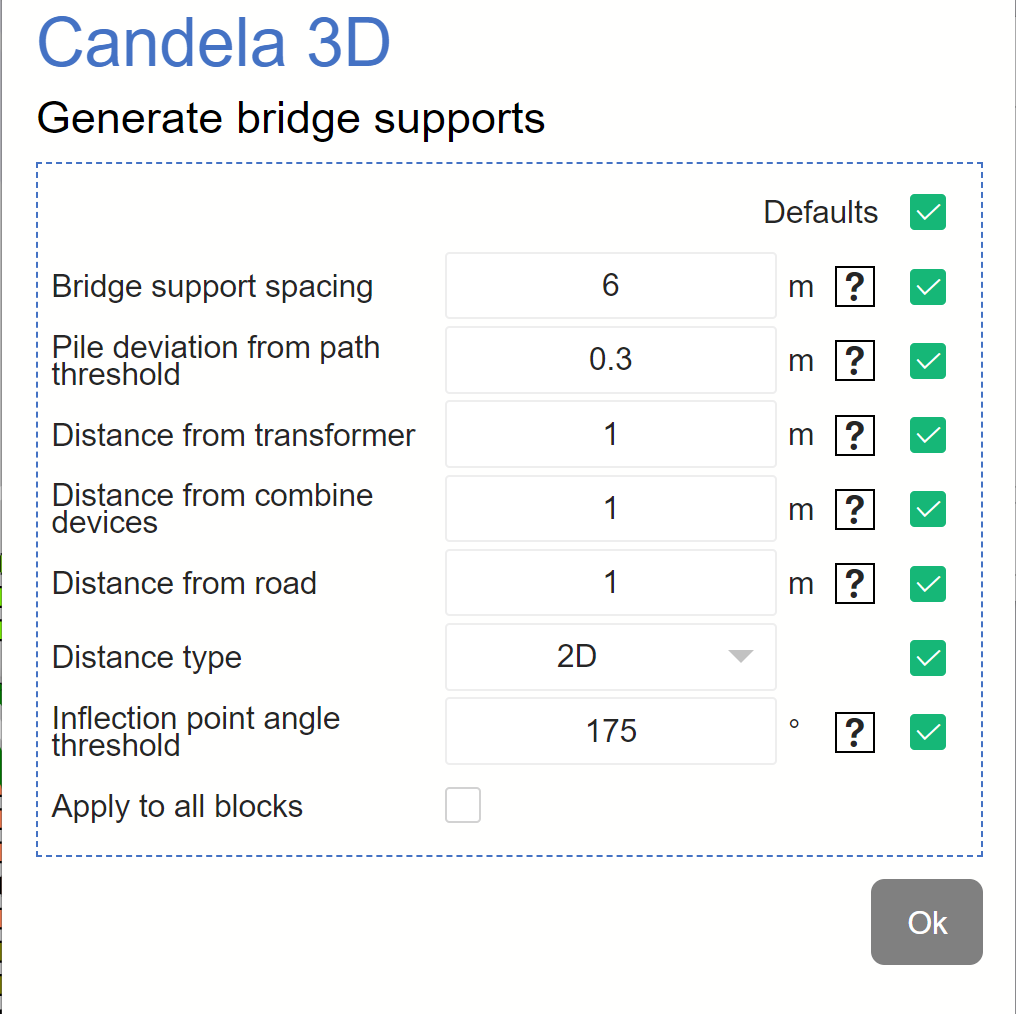

The Candela3D software can automatically generate cable tray stakes based on the settings. The settings interface is as follows:
As shown in the figure below, Red represents the existing pile foundation of the Rack, while Green represents the automatically generated pile foundation of the Cable tray.

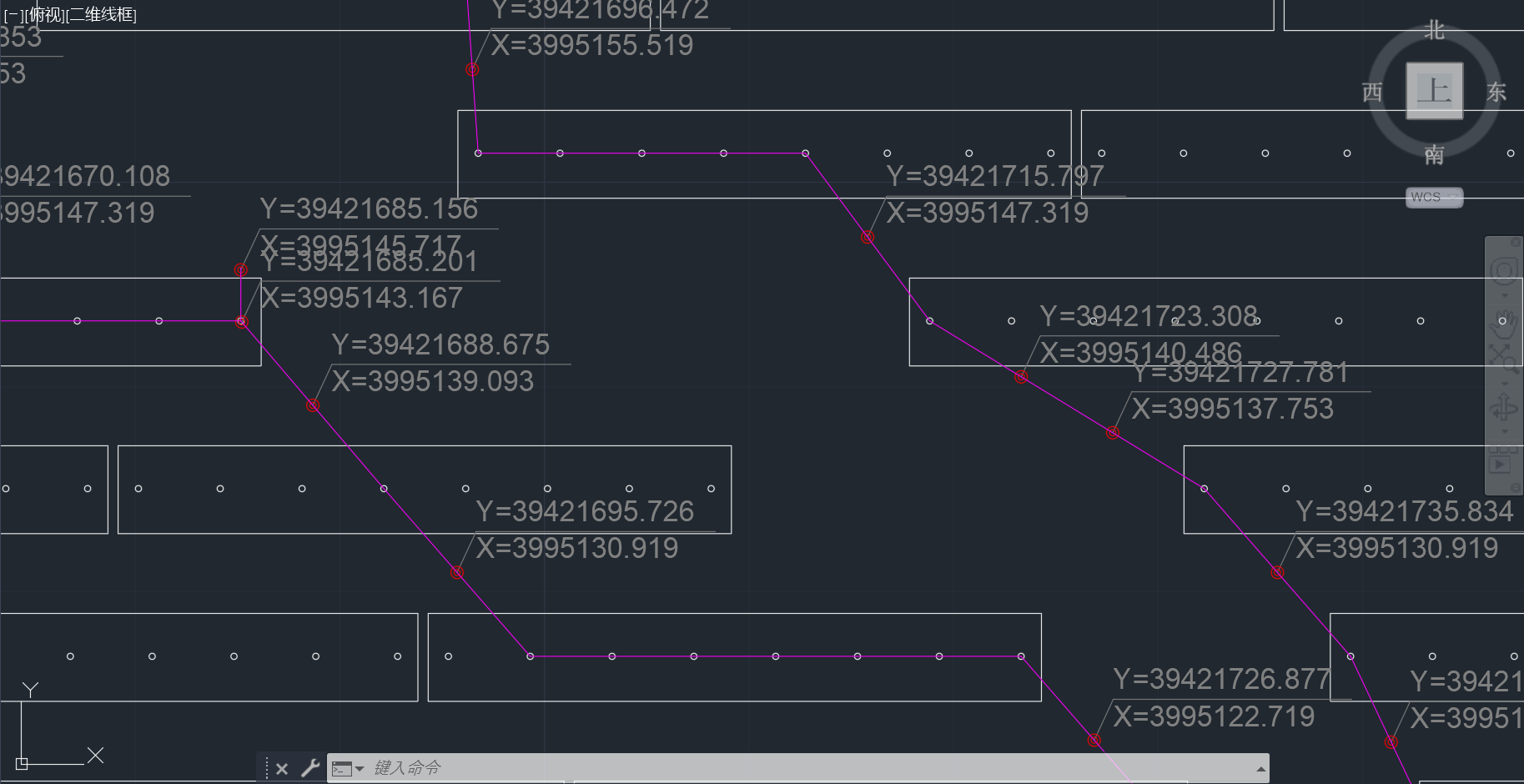

As shown in the figure below, the software can automatically draw the coordinates of the cable tray stakes into CAD.
