Auto wiring, with dozens of plans to choose from

Following completion of creating power block, the subsequent engineering challenge resides in implementing rational combiner configuration for each unit - a process widely acknowledged as one of the most time-intensive phases in photovoltaic system design.

In version 3.6.1, we have improved the algorithm for automatic wiring, enabling the calculation of thousands of plans at once, and providing dozens of final plans for users to choose from.

1. Please watch the video below to learn about the relevant feature introductions

2. Function introduction

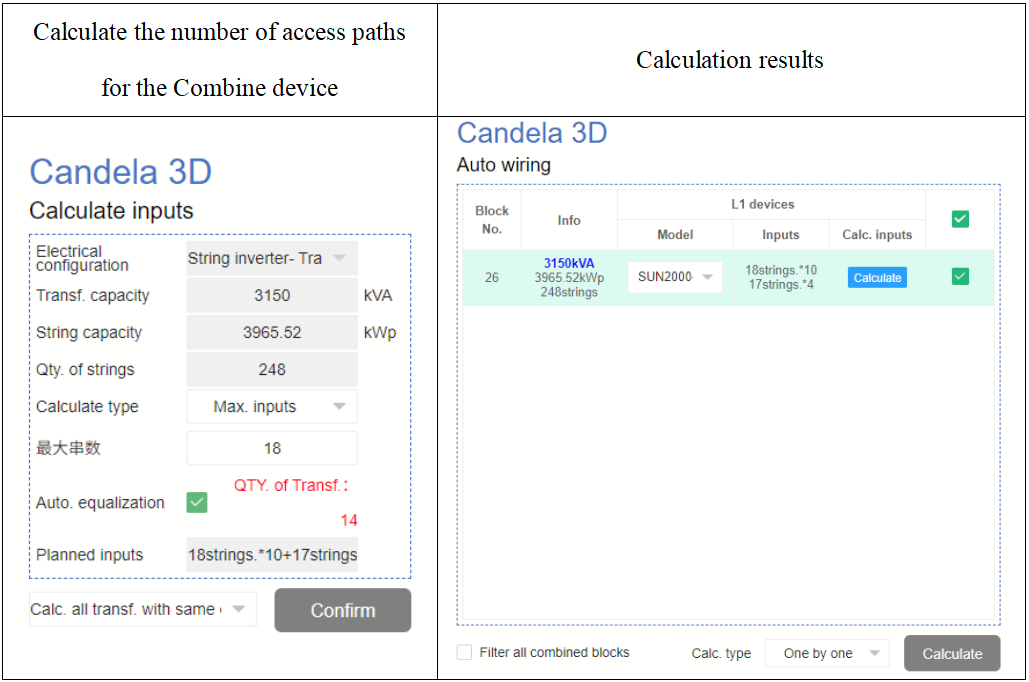

(1) Users can freely set the calculation method for the number of inputs of the Combine device, such as calculating based on the number of Combine devices, the maximum number of inputs, or the capacity ratio, and choose whether to balance the inputs. The software will automatically perform these calculations.

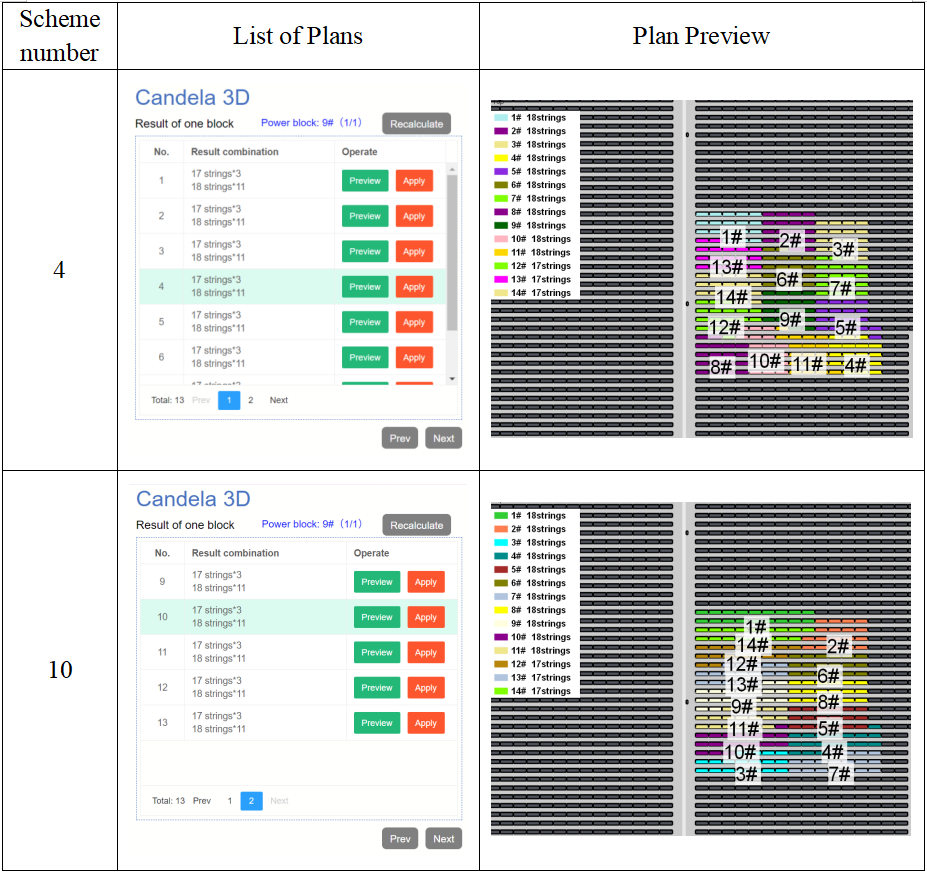

(2) The software is capable of generating multiple division plans based on the Foundation parameters set by the user for selection. As shown in the figure below, the software calculates a large number of plans and ranks them reasonably. The user can click the "Preview" button to preview the division results of each plan.
